12 kW Heat Pump / Air Conditioner Guide: Is It the Right Size for Your NZ Home?

New Zealand homes face a mix of warm summers and cold, damp winters, making reverse cycle capacity sizing important for both cooling and heating performance. A 12 kW heat pump / air conditioner typically suits medium to large open-plan living areas or small homes of roughly 80-100 m² in a temperate New Zealand climate. It’s a specific capacity choice, GENERAL New Zealand advises the solution doesn’t always mean getting the ‘largest unit’.

Key Takeaways

• A 12 kW heat pump in NZ is typically suitable for NZ homes of approx 80-100 m².

• A 12 kW split system in NZ is the best option for one large room or open plan area.

• A 12 kW ducted heat pump can be a good choice for medium-sized homes where comfort is required in several rooms.

• Operating costs depend on the system's efficiency, power input, hours of operation, electricity rates and the extent of the system's use for heating.

• Correct sizing and professional installation are important, particularly for older homes, ducted systems, coastal areas and the colder parts of NZ.

What Room Size Does a 12 kW Heat Pump / Air Conditioner Cover?

On average, a 12 kW air conditioner can effectively heat or cool approximately 80-100 m² in New Zealand conditions. This estimate is based on the common sizing rule of around 100-125 watts per square metre, assuming standard 2.4 m ceiling heights, moderate insulation and a typical residential layout.

A 12 kW system is generally best for large open-plan living spaces, such as a kitchen, dining and lounge area combined in a modern three-bedroom home. It can also be a complete solution for some small terrace houses or townhouses, if it is  a ducted system.

But room size is just part of the equation. Ceiling height, insulation quality and the size and orientation of windows, all influenced by regional climate conditions, play a significant role in capacity requirements. For example, homes in Christchurch or Central Otago usually need to provide a higher level of heating performance than those in Auckland. Older homes may require extra capacity due to poor insulation.

If your home is around 60-80 m², a 10 kW heat pump will be the more appropriate and cost-efficient choice.

As a starting point, take a look at this heat pump size guide. Many NZ homeowners use it to review the key sizing factors before arranging a professional assessment for their home and climate zone. It is important to note, that the table below

Use the General Assist Product Selector tool to match your room measurements with suitable General Airstage heat pump / air conditioner options.

The General Assist tool is a guide only. For the most accurate heat load calculation, speak with a suitably qualified and experienced heat pump / air conditioning installer.

For further support or to arrange a professional measure and quote, contact GENERAL New Zealand’s team of experts.

12 kW Split System vs 12 kW Ducted Heat Pump: Which Should You Choose?

At 12 kW, the choice between a split system and a ducted heat pump comes down to the size of the areas you need to heat and cool.

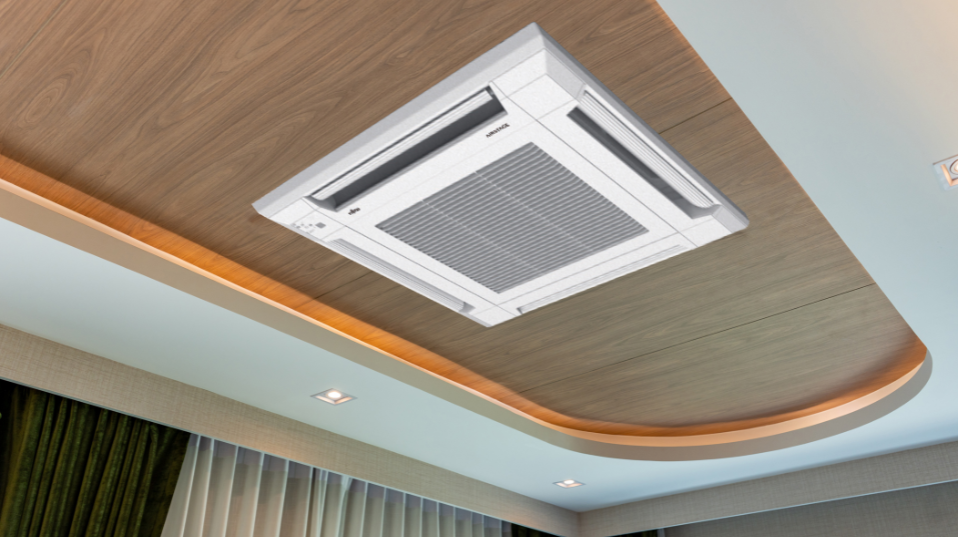

A split system is designed to heat or cool one main room or open plan space. A ducted system is designed to heat or cool multiple rooms or to heat or cool the whole house. Split system 12 kW heat pump / air conditioner models are best suited to one large room or a substantial open-plan zone where whole-home coverage is not required. These models are generally simpler to install and have a lower upfront cost than a ducted system. Cassette units at 12 kW sit at the top end of the residential split system range and are better suited to large living areas.

12 kW ducted heat pump models are the perfect solution for the medium-sized NZ home where comfort in many rooms is the priority. A 12kW ducted system will typically heat a 3-4 bedroom home (subject to layout, insulation and site conditions) when zoned correctly. General Airstage ducted systems are also visually subtle, with only ceiling vents visible inside the home.

If the goal is to condition one large space, a split system is usually more cost-effective. A ducted 12 kW air conditioner system is a practical choice for a medium-sized home, provided a site assessment is completed. This type of system will provide whole-home comfort across multiple rooms.

How Much Electricity Does a 12 kW Heat Pump / Air Conditioner Use in New Zealand?

A 12 kW heat pump in NZ does not usually draw 12 kW of electricity from the wall. The 12 kW figure refers to heating or cooling output capacity. A modern inverter at this size typically draw around 3-5 kW of input power, depending on the model, outdoor temperature, indoor set point and the load on the system. This is why electricity consumption and heat pump NZ figures should be read as indicative only, rather than as a fixed running cost for every home.

For example, a 12 kW reverse cycle heat pump with a 4 kW input running for 4 hours per day at approximately $0.33 / kWh would cost around $1.32 per hour or $5.28 per day in electricity. Confirm the electricity rate and the input power rating of the relevant General Airstage model available in New Zealand before publishing specific figures.

Running costs also depend on how much the system is used for heating versus cooling. In most NZ regions, heating demand is higher than cooling demand. Reverse cycle heat pumps are significantly more efficient than resistive electric heating, such as bar heaters or plug-in heaters. Use the Zoned Energy Rating Label (ZERL) to compare system efficiency across climate zones.

Installation Considerations for a 12 kW Heat Pump / Air Conditioner in New Zealand

Most 12 kW split system heat pumps / air conditioners operate on standard single-phase power, which suits the majority of New Zealand homes. This is a fairly large outdoor unit and needs enough clearance, good airflow and a stable mounting surface at this capacity. A licensed installer should evaluate placement before you purchase, especially in coastal areas where salt air can impact the unit’s condition over time.

A 12 kW ducted heat pump / air conditioner needs ceiling cavity access, duct runs and zone controller wiring. Installation typically takes 1-2 days for a standard home, although older homes can be more complex due to limited ceiling space or unconventional construction.

All installations must be carried out by a registered electrician and licensed refrigeration technician. It should not be treated as a DIY job.

General Airstage 12 kW Heat Pump / Air Conditioner Models

FAQ's

What is the difference between a 12 kW and a 10 kW heat pump / air conditioner?

A 12 kW unit covers a larger floor area, approximately 80-100 m² under standard climate conditions, and is better suited to medium-sized homes or larger open-plan spaces. A 10 kW unit is usually better for spaces up to approximately 80 m². Oversizing can reduce efficiency and increase running costs, so accurate sizing is important.

Is a 12 kW heat pump / air conditioner suitable for a New Zealand winter?

Yes. General Airstage 12 kW models are reverse cycle systems designed to heat and cool. Modern inverter heat pumps/air conditioners provide efficient heating at low ambient temperatures and are suitable for winter use in most parts of New Zealand. In colder southern or high-altitude areas, confirm low-temperature heating capacity with your installer.

How much does a 12 kW heat pump / air conditioner cost to run in New Zealand?

Running costs depend on the system’s efficiency, input power, electricity tariff, usage habits and how well the home retains temperature. A correctly sized 12 kW heat pump / air conditioner will generally run more efficiently than an undersized unit that is constantly running. Insulation, regular filter cleaning and moderate temperature settings also help reduce energy use. To compare model efficiency before purchase, use the Zoned Energy Rating Label (ZERL) as a guide.

Do I need a resource consent to install a ducted heat pump / air conditioner in New Zealand?

In most cases, installing a ducted heat pump / air conditioner in a residential property does not require resource consent, provided the work is carried out by licensed professionals. However, rules can vary by council, property type and installation location. Confirm requirements with your local council and installer before proceeding.

Can a 12 kW heat pump / air conditioner cool as well as heat?

Yes. General Airstage 12 kW heat pumps in NZ are reverse cycle systems, providing heating and cooling from a single unit. This makes them a year-round option for local homes, covering warm northern summers and cold southern winters with the same system.

If you’re ready to find the right solution for your home, find a stockist or contact GENERAL New Zealand (formerly Fujitsu General New Zealand) on 04 568 8761  to speak with our customer service team.
